350mm Pivoting Equaliser
Extreme

Manufactured by Extreme Trailers in Southampton, Uk.

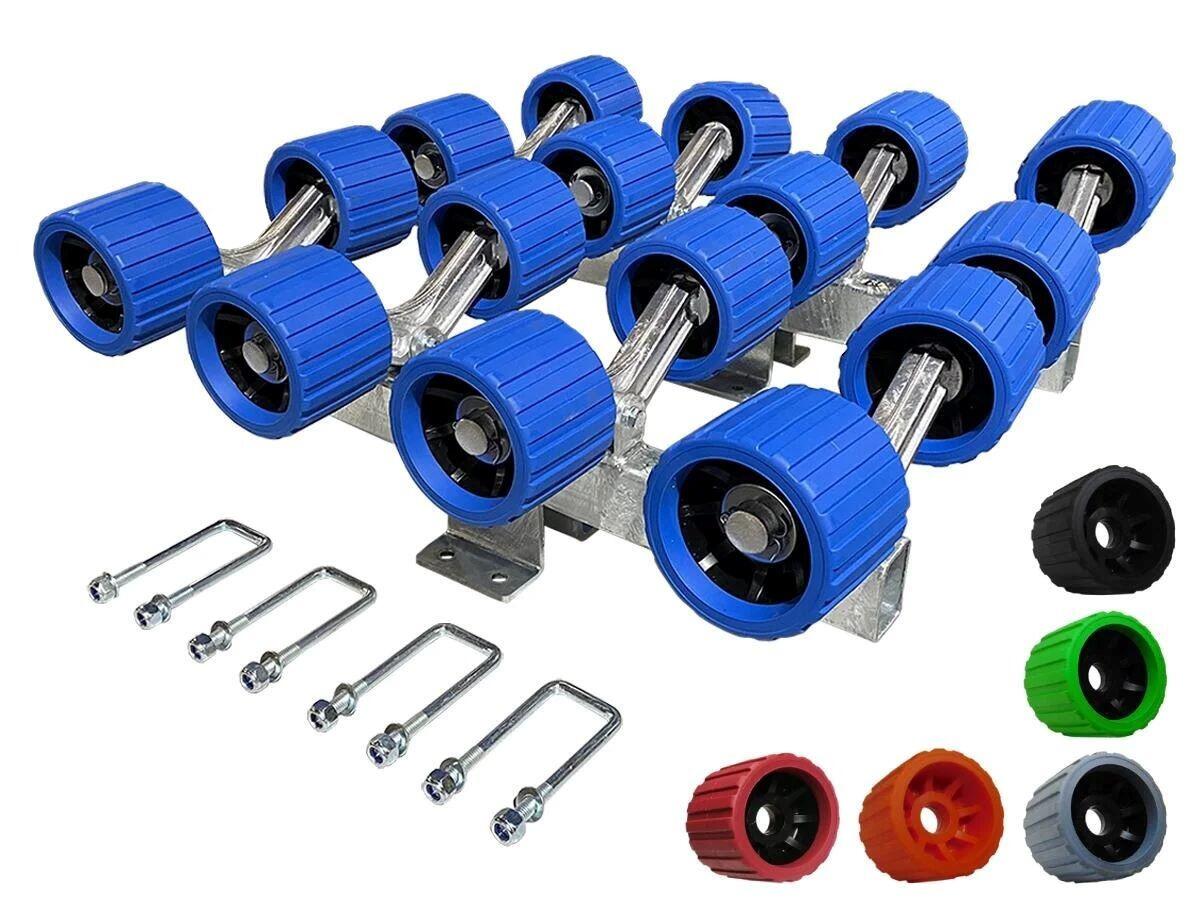

Eight non marking wobble rollers on heavy duty aluminium brackets fitted to a galvanised equaliser.

The equaliser bars are fitted to a ‘L’ bracket which bolts onto to a swinging arm with the U bolts provided.
This assembly is suitable for multiple different box sections.
The rollers have two different height settings and are fully adjustable.
It is suitable for the following type of crafts:

• Jetskis
• Rigid Inflatable Boats (Ribs)
• Speed Boats
• Fishing Boats
• Motor Boats

Different roller colours are available which include blue, black, orange, green, grey & red (please contact us for more details).

Box section of equaliser: 50mm x 30mm
Overall length of equaliser: 350mm
Overall width of roller assembly: 300mm
Maximum supported height: 250mm
No of Rollers: 8

The non-marking wobble rollers offer a large surface area making launching and recovery much easier than the traditional rubber type.

Roller diameter: 110mm
Roller width: 85mm
Overall width: 300mm
Overall height: 130mm
Thickness of wing bracket: 24mm
