Heavy Duty 700mm Swinging Arm Equaliser - Extreme

Heavy Duty 700mm Swinging Arm Equaliser

Manufactured by Extreme Trailers in Southampton, Uk.

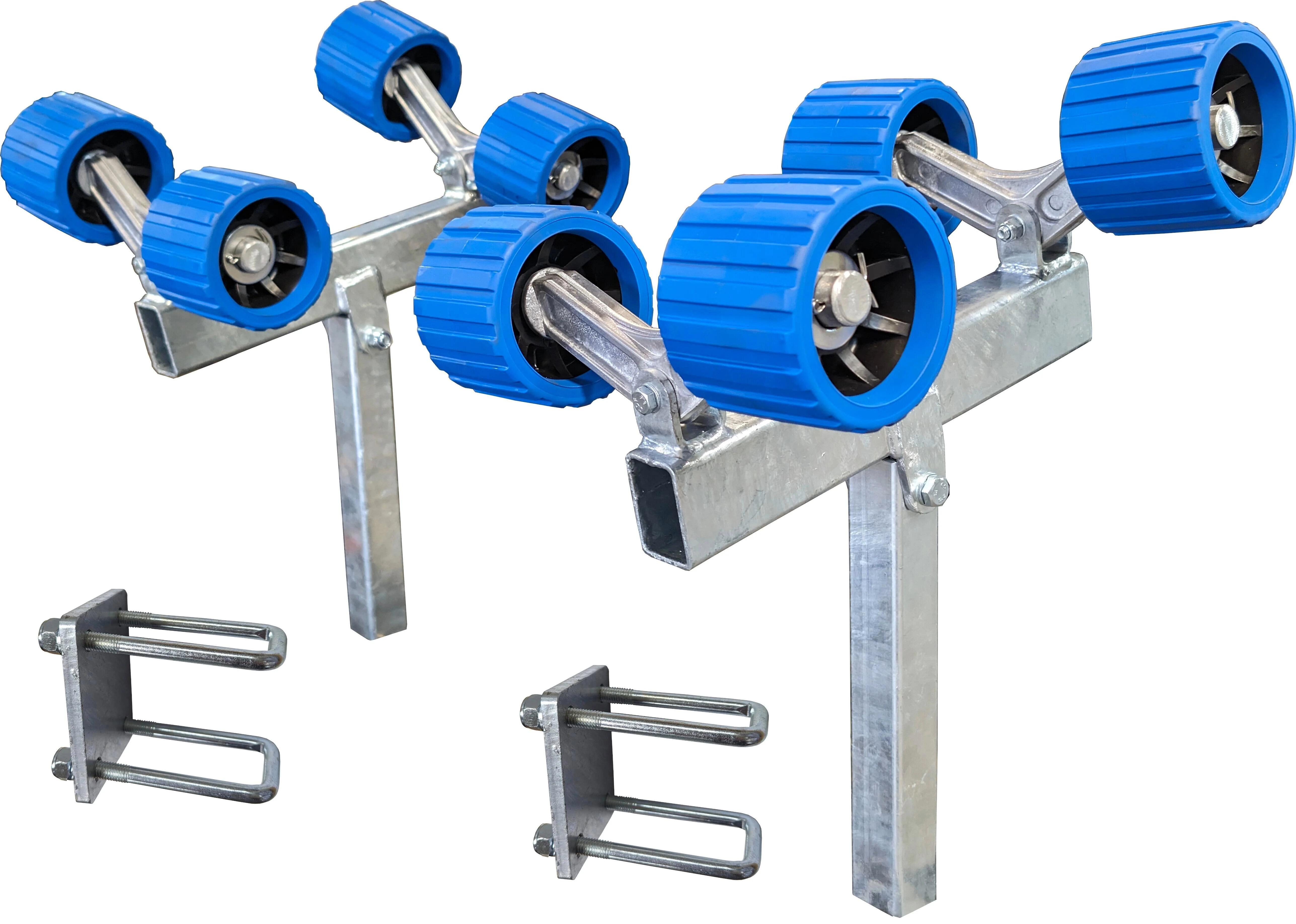

Sixteen non marking wobble rollers on heavy duty aluminium brackets fitted to a galvanised equaliser.

The equaliser bars are fitted to a ‘L’ bracket which bolts onto to a swinging arm with the U bolts provided.
This assembly is suitable for a 60x40mm or 80x40mm box section.
The rollers have two different height settings and are fully adjustable.
It is suitable for the following type of crafts:

  • Jetskis
  • Rigid Inflatable Boats (Ribs)
  • Speed Boats
  • Fishing Boats
  • Motor Boats

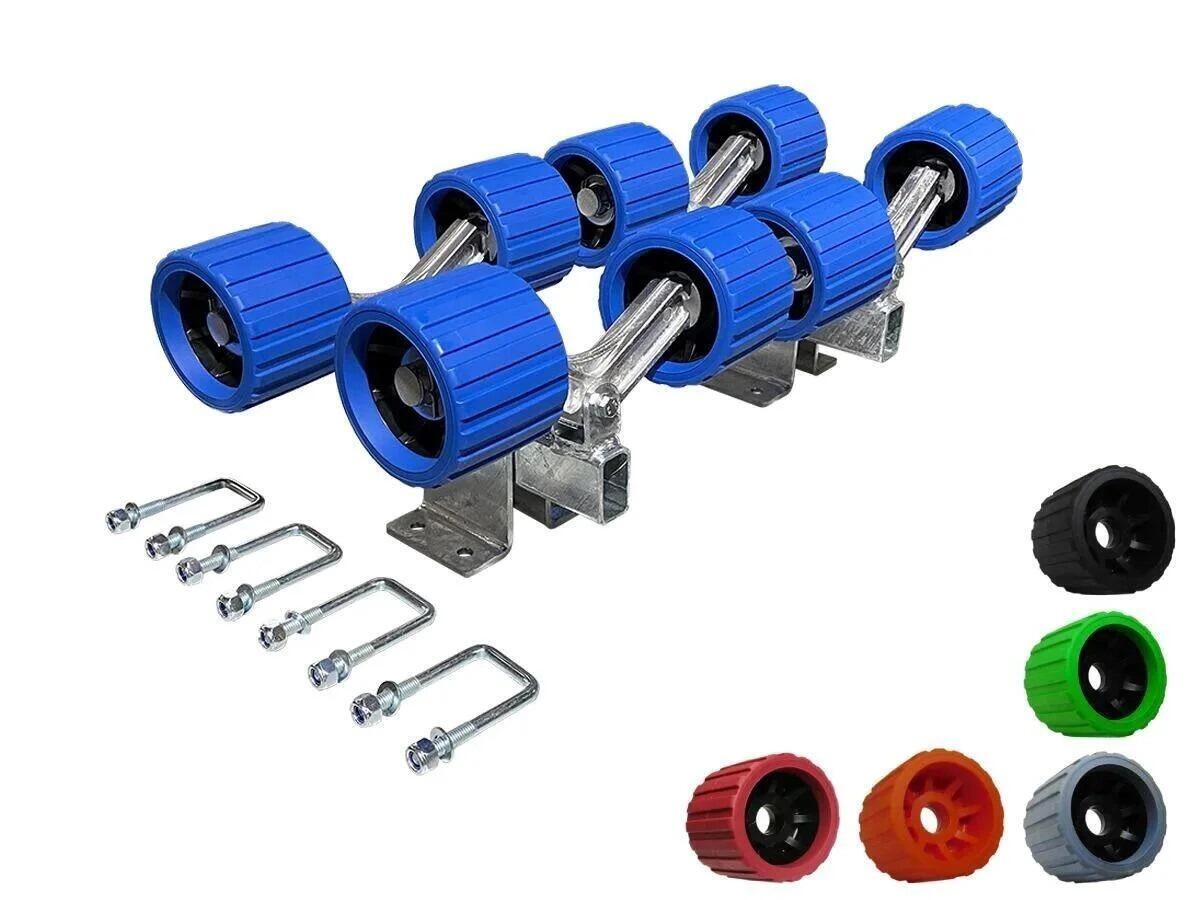

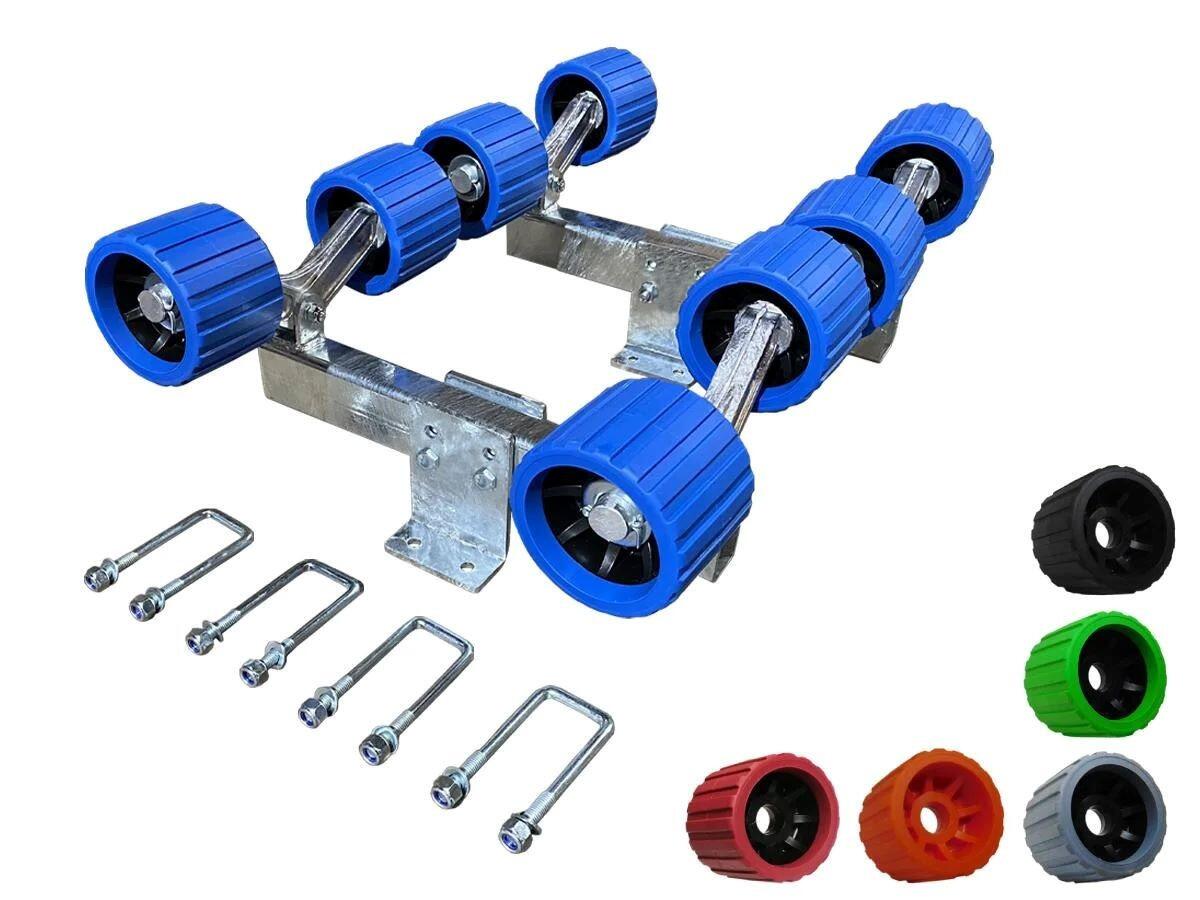

Different roller colours are available which include blue, black, orange, green, grey & red (please contact us for more details).

Box section of equaliser: 80mm x 40mm
Overall length of equaliser: 700mm
Overall width of roller assembly: 300mm
Maximum supported height: 260mm
No of Rollers: 16

The non-marking wobble rollers offer a large surface area making launching and recovery much easier than the traditional rubber type.

Roller diameter: 110mm
Roller width: 85mm
Overall width: 300mm
Overall height: 130mm
Thickness of wing bracket: 24mm
